Standard Signboard Sizes in Malaysia by Type for Billboard Neon Lightbox and More

When you are planning a new signboard, one of the first questions that comes up is what size should I actually order?

Different sign types follow different sizing logic depending on where the sign is installed and how people view it. A billboard follows a completely different sizing logic than a neon sign. A lightbox for a cafe works differently from one for a pharmacy. An acrylic 3D sign for an office lobby has nothing to do with the dimensions of an outdoor frontlit sign.

This guide gives you practical size ranges for each major signage type used in Malaysia, so you know what to expect before you even start a conversation with a signboard company. Whether you are opening a new shop, upgrading your current business signage, or planning your signboard design before requesting quotations, understanding practical sign sizes early can save time, cost, and redesign issues later. This covers what you need to know.

If you want to understand what council rules apply to your signboard dimensions, that is covered separately in our signboard size guidelines Malaysia guide.

Standard Shopfront Signboard — Lightbox and Flat Panel

This is the most common signboard type across Malaysian shop lots, a flat panel or lightbox that runs along the top of the shopfront.

The most widely used size across KL and Selangor is 4ft x 20ft. This fits a standard single unit shop lot and is what most councils treat as the baseline for approval. Smaller shops with a 15-foot frontage typically order 3ft x 10ft. Wider units or double shops go up to 4ft x 24ft or even 5ft x 30ft, depending on frontage.

The basic sizing logic is simple single-unitmatch the board width to your shop width, leave a small gap on both sides, and keep the height proportional. A 3:1 or 4:1 length-to-height ratio works well visually and tends to pass council review without issues.

Common sizes at a glance:

• Small shop under 15ft — 2ft x 8ft or 3ft x 10ft
• Standard single unit around 20ft — 3ft x 10ft to 4ft x 18ft
• Wide shop or double unit 25ft and above — 4ft x 20ft to 5ft x 30ft

3D Frontlit Signboard Size

A 3D frontlit signboard also called a front lit sign or frontlit LED sign, has the same panel dimensions as a standard shopfront board, but the sizing logic for the letters inside is different.

The overall panel follows your shop width the same way. But the letter height matters more here because this is what customers actually read from a distance.

For a shop facing a busy road where people drive or walk past quickly, letters of 40 to 50 centimetres are a practical minimum. For a quieter commercial row or taman perniagaan where customers are walking slowly, 20 to 30 centimetre letters work well.

The LED-illuminated acrylic face sits within a powder-coated aluminium frame, and the total box depth must stay within 30 centimetres to meet standard council requirements. Letter spacing should be consistent letters that are too close together are hard to read, even when the individual letter size is right.

3D Backlit Signboard Size

A 3D backlit signboard or backlit LED sign follows the same overall panel dimensions as a frontlit sign. The key difference is that the light comes from behind the letters, creating a halo glow effect around each letter rather than illuminating the face directly.

Because the lighting effect reads better with some spacing between letters, backlit signs often use slightly wider letter spacing than frontlit ones. Letter heights follow the same viewing distance logic 40 to 50 centimetres for roadside visibility, 20 to 30 centimetres for quieter locations.

The rear-mounted LED module depth adds to the overall sign thickness, so staying within the 30-centimetre council limit applies here too. See our 3D backlit signboard service for examples of how this looks in practice.

LED Lightbox Signage Size

LED lightboxes including fabric lightbox, acrylic lightbox, and slim lightbox options are widely used for pharmacies, F&B outlets, retail shops, and any business that wants a bright, evenly lit panel.

For outdoor shopfronts, the same rule applies, with the width matching the shop frontage with a buffer on each side, height between 3ft to 5ft. A 20-foot shop would typically use a 4ft x 18ft lightbox.

Slim lightboxes used indoors are different. These are much thinner, usually 5 to 8 centimetres deep, and are sized based on the wall area rather than shopfront width. Common indoor slim lightbox sizes are 60cm x 120cm, up to 90cm x 180cm for a single panel. Larger installations use multiple panels joined together.

Ceiling lightboxes are sized based on the ceiling grid or the specific area you want to cover. The frame is usually custom-built for the space.

For a comparison between fabric, acrylic, and slim lightbox options, see our LED lightbox signage service.

LED Neon Signboard Size

Neon signs come in different styles, including LED neon and neon flex designs commonly used for cafes, salons, retail shops, and feature walls, which are sized very differently from panel signboards. They are not about covering a full shopfront. They are about a specific word, phrase, logo shape, or decorative element.

For outdoor storefront neon that is the main signboard, common sizes run from 3ft x 6ft to 4ft x 10ft, depending on the text length.

For indoor neon used in cafes, restaurants, and salons, the kind you see on walls for branding or photography, sizes are much more varied. A short word or logo in neon can be as small as 30cm x 60cm. A full phrase like "Good Vibes Only" across a feature wall might be 60cm x 150cm or larger.

The actual size depends on the text, the font, and the space it goes in. Indoor neon has no strict council sizing restrictions. Outdoor neon must stay within the standard shopfront height and thickness limits.

See our LED neon signboard service for examples of how custom neon signs are sized for different spaces.

Billboard and Outdoor Banner Size

Billboards and outdoor banners fall under a completely different category from premise signboards. They require a separate permit and the sizes are much larger.

Common billboard sizes used in Malaysia:

• Small roadside billboard — 10ft x 20ft
• Medium format — 12ft x 24ft
• Large highway-facing billboard — 20ft x 40ft or larger

The size depends entirely on the location. A highway billboard needs to be readable at 100km/h from 200 metres away, which means letters need to be large enough to read in under two seconds. A roadside billboard in a slower commercial area can be smaller and still work.

Outdoor promotional banners for events, grand openings, and seasonal campaigns are sized differently. Common banner sizes are 2ft x 6ft for smaller promotions, 3ft x 8ft for standard outdoor banners, and 4ft x 10ft to 4ft x 20ft for larger event setups.

When Sportizza needed signage for their sports complex, the outdoor signboards were sized to match the full building frontage, while the indoor wall sticker graphics were planned to cover the exact wall dimensions, every panel measured and produced to fit. You can see the full project on our Sportizza signage project page.

Our ZigZag billboard and outdoor banner service covers large-format outdoor advertising across KL and Selangor, including installation for events, promotions, and permanent roadside displays.

Acrylic 3D Non-Light Signboard Size

Non-illuminated 3D acrylic signs, also called papan tanda tanpa lampu or acrylic letter signs, are sized based on where they go and what they need to communicate.

For office lobbies and reception areas, letter heights of 10 to 20 centimetres are standard. The overall sign footprint depends on the wall space a full reception wall logo might be 60cm x 120cm, while a smaller door sign might be 30cm x 60cm.

For outdoor use on shopfronts, the same shopfront width rules apply as with lightboxes and frontlit boards. Non-light signs are slimmer, usually 3mm to 5mm face thickness, with a simple standoff mount which means they sit well within the 30cm thickness limit.

Stainless steel signboard and EG sheet options follow similar sizing logic. The material is heavier, so larger sizes need stronger wall fixings.

See our 3D non-light signboard service for acrylic, PVC, EG, and stainless steel sign examples.

Pylon and Stand-Type Signage Size

Pylon signage and stand-type signboards are freestanding structures used for commercial buildings, business parks, petrol stations, exit sings and locations where a wall-mounted sign is not enough.

Height varies widely from around 2 metres for a small entrance pylon to 6 metres or more for a commercial property identifier. The display panel on a pylon is typically 90cm x 120cm to 120cm x 180cm for a single-tenant sign, and larger for multi-tenant pylons that show multiple businesses.

Width and structural depth depend on what the pylon needs to hold and how it is engineered. Pylon signage is normally custom-built around the property layout, viewing distance, and structural requirements of the location. The number of tenants, and the council's specific requirements for that location. See our pylon signage service for more.

Wall Sticker and Vehicle Wrap Size Guide

Wall stickers, glass stickers, and lorry sticker designs are sized based on the surface they cover. There is no universal standard the size is whatever the wall, window, or vehicle dictates.

For full-wall murals in cafes or offices, the sticker print is cut to the exact wall dimensions, which could be anything from a 2-metre feature wall to a full 10-metre corridor wrap. For window stickers on shop glass, frosted privacy stickers are usually cut to 60 to 80 percent of the glass area, leaving clear sections at the top and bottom.

Lorry stickers and vehicle wraps are sized based on the lorry model and panel dimensions. Each vehicle has its own surface template.

See our wallpaper and sticker printing service for wall, glass, and lorry sticker options across KL and Selangor.

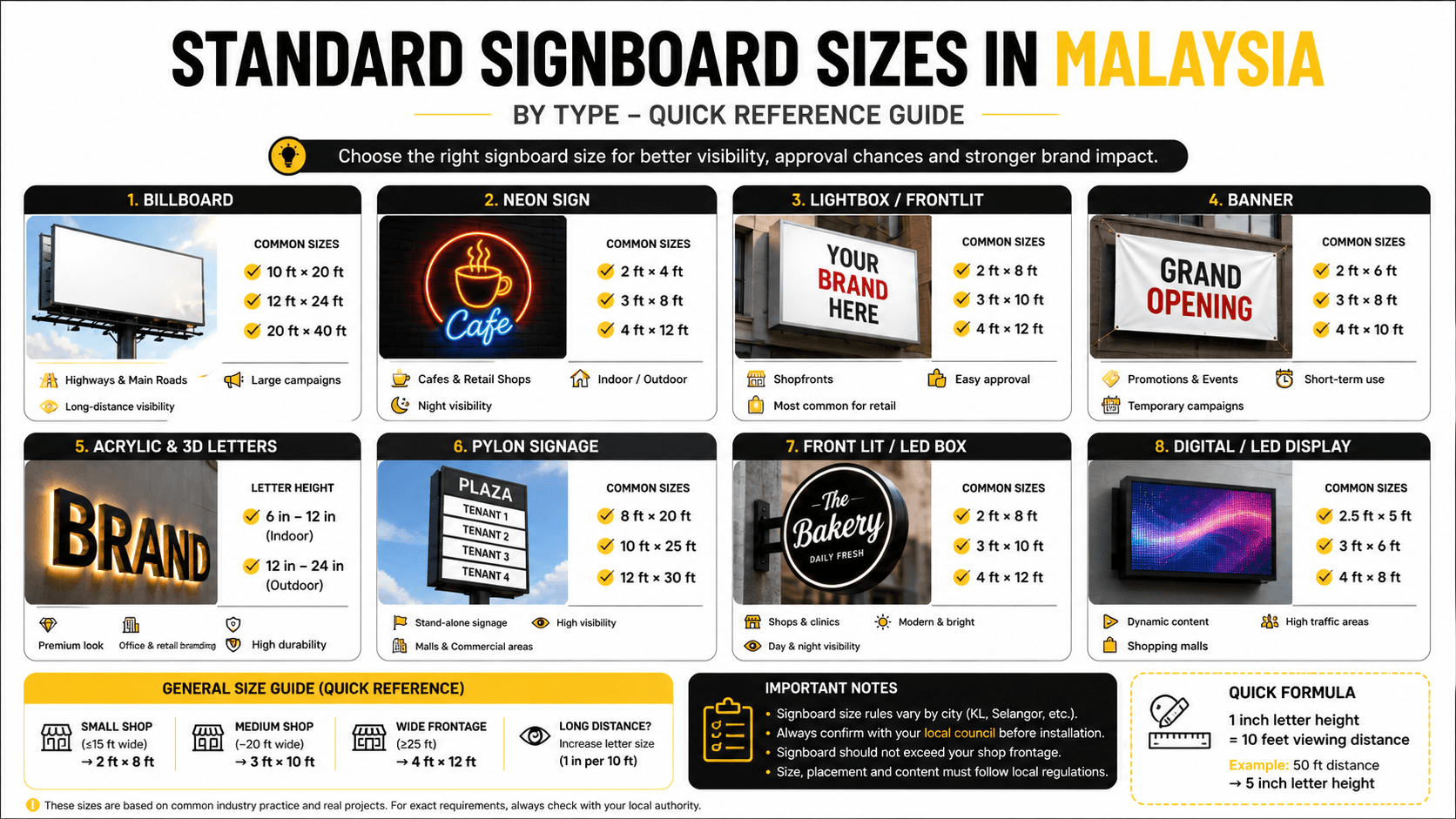

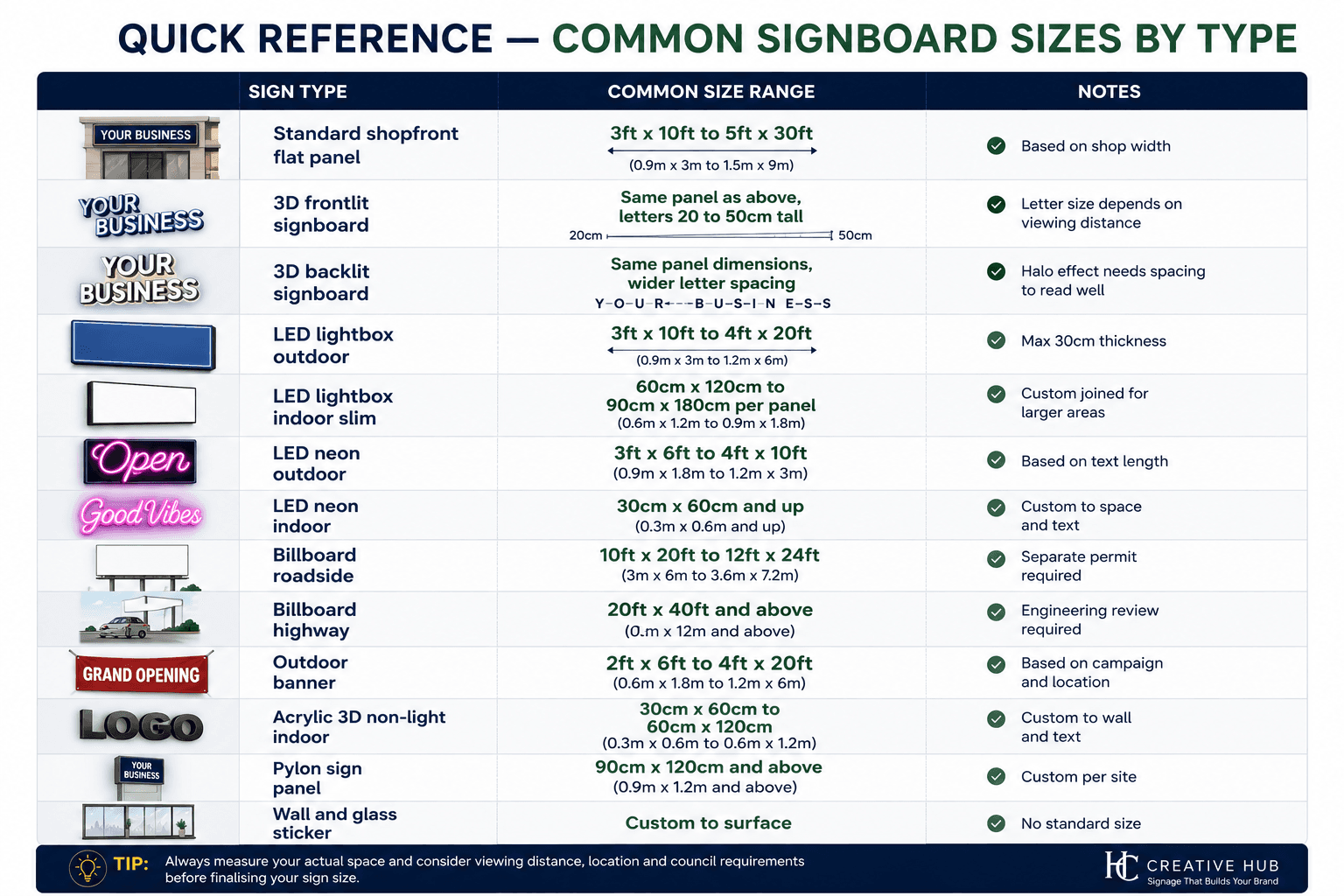

Quick Reference Table for Common Signboard Sizes

Sign type / Common size range / Notes

• Standard shopfront flat panel / 3ft x 10ft to 5ft x 30ft / Based on shop width
• 3D frontlit signboard / Same panel as above, letters 20 to 50cm tall / Letter size depends on viewing distance
• 3D backlit signboard / Same panel dimensions, wider letter spacing / Halo effect needs spacing to read well
• LED lightbox outdoor / 3ft x 10ft to 4ft x 20ft / Max 30cm thickness
• LED lightbox indoor slim / 60cm x 120cm to 90cm x 180cm per panel / Custom joined for larger areas
• LED neon outdoor / 3ft x 6ft to 4ft x 10ft / Based on text length
• LED neon indoor / 30cm x 60cm and up / Custom to space and text
• Billboard roadside / 10ft x 20ft to 12ft x 24ft / Separate permit required
• Billboard highway / 20ft x 40ft and above / Engineering review required
• Outdoor banner / 2ft x 6ft to 4ft x 20ft / Based on campaign and location
• Acrylic 3D non-light indoor / 30cm x 60cm to 60cm x 120cm / Custom to wall and text
• Pylon sign panel / 90cm x 120cm and above / Custom per site
• Wall and glass sticker / Custom to surface / No standard size

A Note on Custom Sizing

Every size in this guide is a starting point, not a fixed rule. The right size for your signboard depends on your shop width, your location, your audience, and what you want the sign to actually do.

As a signage company in Malaysia with over 13 years of experience, HC Creative Hub always measures your space first and sizes the sign from there, not the other way around. Whether you need a signage design for a new shopfront, an indoor neon feature wall, or large-format outdoor advertising, the size and design are figured out together, not separately. That early planning process helps avoid common problems like resizing artwork later, production delays, or signs that look too small once installed on site.

Not sure what size works for your situation? Chat with our team on WhatsApp, and we can give you a practical answer before you spend anything on design or production. or yo can check our signboard services for understanding.

FAQ

What is the standard signboard size in Malaysia?

For a standard single-unit shopfront, 4ft x 20ft is the most common size used across KL and Selangor. But this is not a fixed rule, it is the typical outcome when you size a sign for a standard shop lot. Smaller shops use 3ft x 10ft. Wider shops go larger. The size always starts from the shop width, not a catalogue.

Do different signage types have different size rules?

Yes, completely. A billboard follows highway visibility logic. A neon sign follows the text and the space it fills. A lightbox follows the shopfront width. A pylon is engineered to the site. Each type has its own sizing approach, and there is no single answer that covers all of them.

What is the maximum size for an indoor neon sign?

There is no technical maximum for indoor neon because council size rules do not apply indoors. The practical limit is whatever your wall can hold and what looks right in the space. Most indoor cafe and restaurant neon signs range from 60cm x 100cm up to 80cm x 200cm for longer phrases.

Does billboard size affect the permit application?

Yes. Billboard permit requirements depend on size, location, and structural design. Larger billboards need a structural engineer's report and, in some cases, public liability insurance. The council review for billboards is more detailed than a standard premise signboard application.

I need a custom size — is that possible?

Almost all signboards in Malaysia are custom-made to fit the specific space. The sizes here are practical reference points, not catalogue options. If your shop width is 17 feet, your sign is made to 17 feet minus buffer space, not rounded to the nearest standard size.

Apakah saiz biasa untuk papan tanda kedai di Malaysia?

Saiz yang paling biasa untuk kedai standard ialah 4 kaki x 20 kaki. Ini sesuai untuk lot kedai biasa di KL dan Selangor. Papan tanda neon, lightbox, dan 3D masing-masing mempunyai saiz yang berbeza bergantung kepada jenis papan tanda dan ruang yang tersedia.
